rincian produk

Rumah Produk

Power Cord Pull Tester for Tensile Strength, Flexibility, and Safety Compliance in Cable Testing Equipment

Nama merek:	HongCe
Nomor Model:	AP-1
Moq:	1 set
harga:	Negotiatable
Ketentuan Pembayaran:	T/t, l/c, d/p
Kemampuan Penyediaan:	15 pasang per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

CINA

Sertifikasi:

Testing Certificate(cost additional)

Standar:

UL817

Muat arus:

0 ~ 40a dapat disesuaikan

Tegangan Beban:

4~12V

Stasiun kerja:

6 stasiun kerja

Kemasan rincian:

Kayu lapis

Menyoroti:

Tensile Strength Power Cord Pull Tester

Flexibility Cable Testing Equipment

Safety Compliance Cable Tester

Deskripsi Produk

Power Cord Pull Tester for Tensile Strength, Flexibility & Safety Compliance

The Power Cord Pull Tester is a professional test device designed for cables, power cords, and plug assemblies. It simulates the tensile forces, stresses, and pulls encountered in actual use, ensuring product durability and reliability in accordance with international safety standards.

Product Overview

This device meets UL817 standards, ensuring power plugs remain firmly attached to cords and can withstand sudden pulls without breaking. Our testing equipment performs three critical tests:

Abrupt pull test (UL 817 clauses 99.1~99.2) - evaluates cord resistance to sudden yanks
Jacket retention test (UL 817 clauses 100.1~100.3) - verifies outer cord layer stability
Flexing test (UL 817 clauses 96.1~96.5) - assesses cord flexibility without damage

The equipment operates automatically with preset test counts or durations. It features high accuracy, logical setup, and easy maintenance.

Technical Parameters

Parameter	Specification
Power supply	AC 127V / 60Hz
Standards	UL817
Load current	0~40A adjustable
Load voltage	4~12V
Workstation	6 work stations
Test times	1~9999
Test time	0-999.9s
Loading weights	2.5 lb, 3 lb, 15 lb (6 pieces of each)
Environment	0～40℃ / humidity ≤85%, no violent shaking, shock, vibration, or corrosive air
Dimension	WDH = 9305101530mm, 273kg (include weights)

Maintenance Guidelines

Remove test samples and weights when not in use, then power down all connected sources
Handle equipment gently to avoid damage to internal components
Maintain dry conditions, protecting from liquids, dust, and dampness
Establish regular maintenance schedule with inspection records
Replace worn components periodically
Review user guide before operation for safety and optimal performance

Product Features

High-precision pull test: simulates sudden pull stress during plugging/unplugging and impacts
Versatile: tests power cords, plugs, and cable assemblies
User-friendly: adjustable pull force and quick fixture replacement
Compliance: meets IEC 60320, IEC 60884, and UL 817 standards
Stable: rugged construction with highly repeatable results

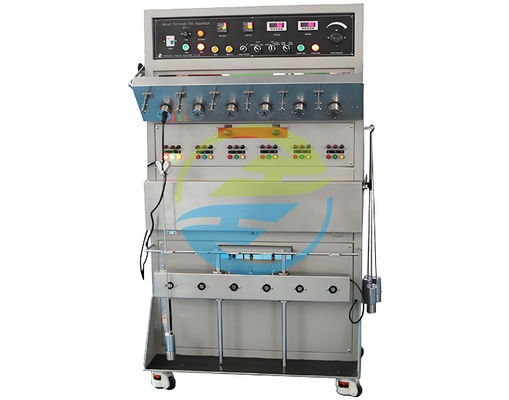

Product Image

Company Profile

HongCe, located in Guangzhou, China (established as HongTong Electromechanical Co., Ltd in 2003), specializes in test equipment and systems for electronics and appliances. We focus on both lab testing equipment and production line systems with strong R&D capabilities.

Our products meet GB, IEC, EN, UL, VDE, BS, AS, and ISO standards, including test equipment for switches, plugs, mechanical, fire, and environmental testing. Our clients include certification groups, inspection agencies, labs, and manufacturers worldwide such as Bureau Veritas, CSA, ITS, UL, TUV Rheinland, TUV SUD, and SGS.
