Intelligent Pump Performance Testing Equipment for Flow, Pressure, Efficiency & Head Analysis

Nama merek:	HongCe
Nomor Model:	HC-WPVT-002
Moq:	1 set
harga:	Dapat dinegosiasikan
Ketentuan Pembayaran:	T/T,L/C
Kemampuan Penyediaan:	1 Set Per Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Calibration certificate(cost additional)

Metode kontrol aliran:

Regulasi kelistrikan

Metode Pengukuran Aliran:

Metode elektromagnetik

Keakuratan Sistem:

kelas 1

Parameter yang diukur:

Tegangan, Arus, Daya, Aliran, Kecepatan, Tekanan, Head, Torsi

Analisis Kurva:

Kurva HQ, PQ, η-Q, (NPSH)rQ

Layanan yang disesuaikan:

Mendukung kustomisasi non-standar

Kemasan rincian:

kayu lapis

Menyoroti:

intelligent pump testing equipment

pump performance testing for flow

pressure efficiency head analysis equipment

Deskripsi Produk

Intelligent Pump Performance Testing Equipment

Comprehensive pump testing equipment designed for precise performance evaluation of various water pumps, integrating advanced sensors, automated data acquisition software, and a stable hydraulic testing platform.

Key Features

Intelligent Automated Testing: Automatically collects and processes pump performance data, reducing manual intervention and improving testing efficiency
High-Precision Measurement: Advanced sensors ensure accurate measurement of flow rate, pressure, torque, speed, and electrical parameters
Real-Time Data Monitoring: Operators can monitor testing parameters and performance curves in real time via industrial computer interface
Multiple Curve Analysis: Automatically generates important pump characteristic curves including H-Q (Head vs Flow), P-Q (Power vs Flow), η-Q (Efficiency vs Flow), and NPSH (Cavitation Performance) curves
Flexible Pump Compatibility: Supports testing of multiple pump types including centrifugal pumps, submersible pumps, pipeline pumps, and automotive pumps

International Reference Standards

ISO 9906:2012 – Rotodynamic pumps hydraulic performance acceptance tests
ISO 2548 – Centrifugal pump performance test method
GB/T 3216-2016 – Rotodynamic pump hydraulic performance acceptance test
GB/T 12785-2002 – Submersible electric pump test method
GB/T 3216-2005 – Pump hydraulic performance testing method

Technical Parameters

Parameter	Specification
Test Medium	Clean Water
Test Pump Type	Pipeline Pump, Vertical Multistage Pump etc.
Voltage Range	0-450 V
Maximum Power	20 kW
Speed Range	0-3000 rpm
Maximum Flow Rate	Up to 1000 m³/h
Head Range	0-150 m
Water Circulation System	Open circulation system

Applications

Pump manufacturing factories
R&D laboratories
Product certification laboratories
Quality inspection departments
Automotive pump manufacturers
Industrial pump production lines
Energy efficiency evaluation centers

Test Items

Flow Rate
Pump Head
Inlet Pressure
Outlet Pressure
Shaft Torque
Rotational Speed

Pumps That Can Be Tested

Centrifugal Pumps
Submersible Pumps
Pipeline Pumps
Self-Priming Pumps
Chemical Pumps
Screw Pumps

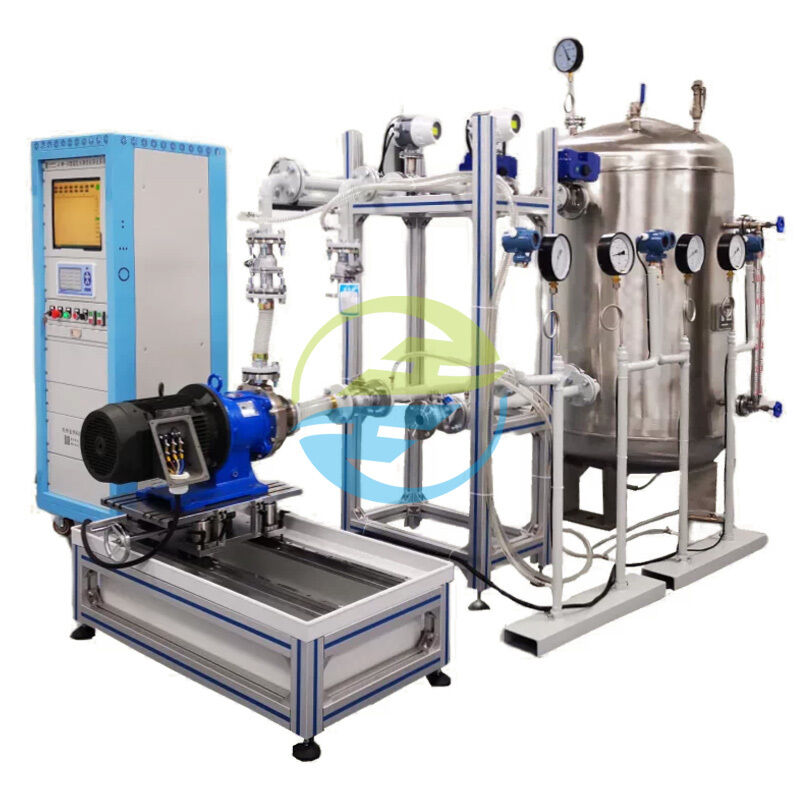

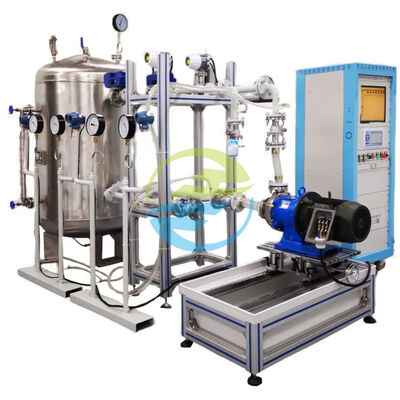

Equipment Photo

After-Sales Service

Professional installation guidance
Remote technical support
Engineer operation training
Discounted spare parts supply
Software updates and maintenance

Frequently Asked Questions

What types of pumps can this testing system evaluate?

The equipment supports centrifugal pumps, submersible pumps, booster pumps, pipeline pumps, chemical pumps, and automotive water pumps.

Can the system automatically generate performance curves?

Yes. The software automatically generates H-Q, P-Q, η-Q and NPSH curves after the testing process.

Is the system customizable?

Yes. The system can be customized according to pump size, power capacity, and testing requirements.

What industries typically use pump testing equipment?

Pump manufacturers, laboratories, automotive component suppliers, and research institutions.

Does the system support automated data storage?

Yes. The computer system automatically stores all test data and allows report export.
