Uji Probe Jari
Created with Pixso.

Precision Small Test Pin Probe with Stainless Steel Tip and Ergonomic Nylon Handle for IEC 61032 Safety Compliance

Precision Small Test Pin Probe with Stainless Steel Tip and Ergonomic Nylon Handle for IEC 61032 Safety Compliance

Precision Small Test Pin Probe with Stainless Steel Tip and Ergonomic Nylon Handle for IEC 61032 Safety Compliance

Nama merek: HongCe
Nomor Model: HT-I30
Moq: 1 set
harga: Negotiatable
Ketentuan Pembayaran: T/T,L/C
Kemampuan Penyediaan: 200 Set/ bulan
Informasi Rinci
Deskripsi Produk
Informasi Rinci
Tempat asal:
Cina
Sertifikasi:
TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Kemasan rincian:
Kotak aluminium
Menyoroti:

Precision Small Test Pin Probe

,

Stainless Steel Electrical Accessibility Probe

,

Ergonomic Nylon Handle Safety Compliance Probe

Deskripsi Produk
Precision Small Test Pin Probe for IEC 61032 Figure 9 Safety Compliance – Stainless Steel Electrical Accessibility Probe with Ergonomic Nylon Handle for Household Appliance Testing
At HongCe, we craft more than just equipment; we create confidence. You'll find our Nylon Handle Steel Test Probe in top-notch testing labs and quality control spots around the world. Our HT-I30 (Small Test Pin) is built to mimic kids' fingers poking around inside appliances and gadgets, checking for danger. Since we make these ourselves, you get top-quality, safety-standard testing tools straight from the factory, without extra costs. Every probe shows our dedication to doing great work, so you can be sure your products are safe for everyone.
International Standards & Compliance
  • IEC 61032:1997: Protection of persons and equipment by enclosures - Probes for verification (Figure 9, Test Probe 13)
  • IEC 60335-1: Safety of household and similar electrical appliances
  • IEC 60950: Safety of information technology equipment
  • IEC 60529: Degrees of protection provided by enclosures (IP Code)
  • IEC 60065: Audio, video, and similar electronic apparatus – Safety requirements
Product Features
  • Precision Engineering: CNC-machined probe tip ensures exact adherence to IEC dimensions
  • Superior Materials: Features a hardened stainless steel pin to prevent bending and a high-insulation nylon handle for safe, comfortable operation
  • Ergonomic Design: The lightweight, non-slip handle is designed for long hours of repetitive testing without hand fatigue
Technical Specifications
Parameter Specification
Model HT-I30 (BS probe, rounded tip)
Probe diameter Ф1
Insulating material diameter Ф8
Handle diameter Ф20
Probe length 20
Insulating material length 30 ± 0.2 mm
Handle length 50 ± 1 mm
Test Applications
  • Household electrical appliances
  • Power tools
  • IT and AV equipment
  • Lighting products
  • Industrial control devices
  • Chargers, adapters, and power supplies

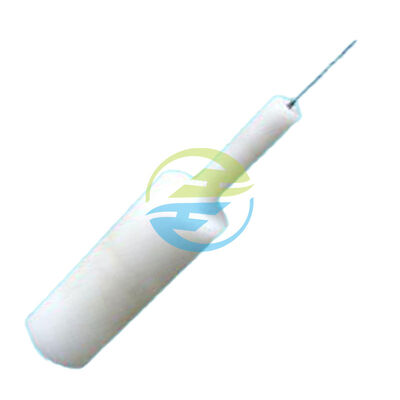

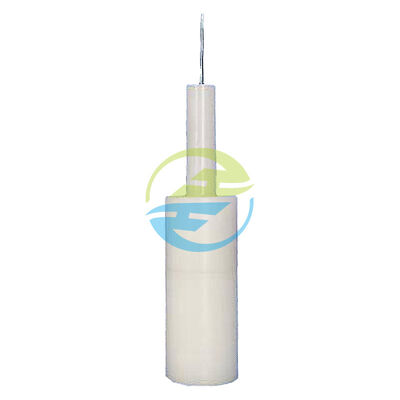

Product Image
Precision Small Test Pin Probe with Stainless Steel Tip and Ergonomic Nylon Handle for IEC 61032 Safety Compliance 0
