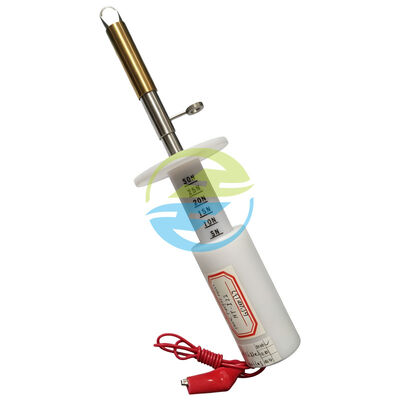

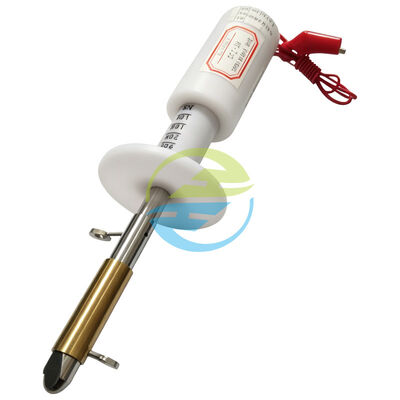

IEC Test Finger Probe for Mechanical Strength and Accessibility Testing of Household Electrical Appliances

Name: IEC Test Finger Probe for Mechanical Strength and Accessibility Testing of Household Electrical Appliances
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HT-I22
Price: 5,000.00 USD
Availability: InStock

Nama merek:	HongCe
Nomor Model:	HT-I22
Moq:	1 set
harga:	Dapat dinegosiasikan
Ketentuan Pembayaran:	T/T,L/C
Kemampuan Penyediaan:	30 set per Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Calibration certificate(cost additional)

Panjang probe:

80mm

Diameter:

φ12

Merupakan:

Jari, jari tengah, dasar jari

Berikan tekanan:

10N、20N、30N

Model:

HT-I22

Sudut Kuku Jari:

37°

Diameter jari uji:

Φ12mm

Angkatan Terapan:

10N, 20N, 30N

Kemasan rincian:

Kotak aluminium

Deskripsi Produk

IEC Test Finger Probe for Mechanical Strength and Accessibility Testing of Household Electrical Appliances

Product Overview

The IEC 60335 test finger sleeve is designed to evaluate the mechanical strength and protective performance of non-removable components in household appliances. It is widely used to verify whether protective components designed to prevent contact with hazardous internal parts, moving mechanisms, or humidity-sensitive structures can withstand the mechanical stresses encountered during normal use.

This test finger sleeve is manufactured by Hongce, a professional manufacturer of IEC testing equipment, and is designed strictly according to the requirements of IEC 60335 Figure 7 and GB4706.1 Figure 7, providing reliable and safe test results for laboratories, manufacturers, certification bodies, and quality control departments.

IEC Test Finger Probe for Mechanical Strength and Accessibility Testing of Household Electrical Appliances

Product Features

High Standard Compliance

Designed according to IEC 60335-1 Figure 7.
Meets GB4706.1 Figure 7 requirements.
Suitable for international safety compliance testing.

Precision Mechanical Testing

Supports multiple applied forces.
Provides reliable mechanical stress simulation.
Ensures consistent testing performance.

Durable Construction

Precision-machined stainless steel structure.
Excellent wear resistance.
Long service life for laboratory applications.

Flexible Testing Capability

Suitable for various appliance structures.
Applicable for accessibility and mechanical robustness testing.

Factory Direct Supply

Source manufacturer with R&D capabilities.
Custom testing solutions available.
Stable delivery and technical support.

Product Functions

Mechanical stress testing.
Accessibility verification.
Protective structure evaluation.
Household appliance safety testing.
Compliance testing.
Quality inspection.
Product certification support.
Design validation testing.

IEC Test Finger Probe for Mechanical Strength and Accessibility Testing of Household Electrical Appliances

International Standards & Compliance

Standard	Clause	Description
IEC 60335-1	Figure 7	Test nail requirements for household appliances
IEC 60335-1	Clause 8.1	Protection against access to internal parts
IEC 60335-1	Clause 22	Construction requirements
GB4706.1-2005	Figure 7	Mechanical strength requirements
IEC 61032	Accessibility test requirements	Protection verification principles
IEC 60529	Accessibility protection evaluation	Protection level verification
IEC 62368-1	Accessibility assessment	Safety engineering requirements
IEC 60950	Accessibility test requirements	Electrical equipment testing
UL Safety Standards	Accessibility evaluation	Product safety assessment

Technical Parameters

Technical Parameters	Specifications
Product Name	Test Finger Probe
Model	HT-I22
Standard	IEC60335 Figure 7
Reference Standard	IEC60335-1 Figure 7
Reference Standard	GB4706.1-2005 Figure 7
Probe Length	80 mm
Finger Nail Angle	37°
Test Finger Diameter	Φ12 mm
Applied Force Option 1	10N
Applied Force Option 2	20N
Applied Force Option 3	30N

Core Testing Technology

Standardized finger nail geometry simulation
Precision force application
Mechanical stress simulation
IEC compliant accessibility testing
Repeatable laboratory-grade measurements
International safety standard compliance design

FAQ

Q1. What standards does this Test Finger Probe comply with?

It complies with IEC60335 Figure 7 and GB4706.1 Figure 7 requirements.

Q2. What products can be tested?

It is suitable for household appliances, electrical equipment, and non-removable protective structures.

Q3. What forces can be applied?

The HT-I22 supports:

Q4. Is customization available?

Yes. HongCe provides customized IEC testing solutions.

Q5. Are calibration services available?

Calibration certificates can be provided upon request.

Q6. Can it be used in certification laboratories?

Yes. It is widely used by certification bodies and testing laboratories.

IEC Test Finger Probe for Mechanical Strength and Accessibility Testing of Household Electrical Appliances

Structural diagram

IEC Test Finger Probe for Mechanical Strength and Accessibility Testing of Household Electrical Appliances

About HongCe

HongCe is a professional manufacturer specializing in IEC Test Equipment and electrical safety testing instruments.

Our capabilities include:

Product R&D
Mechanical design
Precision manufacturing
Quality control
Technical consulting
OEM & ODM services
Global after-sales support

With years of experience in international compliance testing equipment, HongCe has supplied customers across Asia, Europe, the Middle East, South America, and Africa.
