Cold Impact Resistance Testing Machine for Electrical Accessories & Cables | IEC 60884 Low Temperature Impact Test Equipment

Cold Impact Resistance Testing Machine for Electrical Accessories & Cables | IEC 60884 Low Temperature Impact Test Equipment

Nama merek: HongCe
Nomor Model: HC9924
Moq: 1 Set
harga: Dapat dinegosiasikan
Ketentuan Pembayaran: L/C,T/T
Kemampuan Penyediaan: 20 set per bulan
Informasi Rinci
Tempat asal:
Cina
Sertifikasi:
Calibration certificate(cost additional)
Stasiun Uji:
1 stasiun
Dampak Hammer:
1000±2g dan 100±1g
ketinggian benturan:
100mm
ketebalan pendukung:
1000
Standar:
IEC60884-1 24.4 Gambar 27, IEC60884-1 30.4 Gambar 42
Operasi:
Pelepasan manual dan mekanis
Ketebalan penyangga baja:
40mm, berat: 10±1kg
Bagian perantara baja:
Φ20, ujung bawah bulat R300, 100g
Kemasan rincian:
kayu lapis
Deskripsi Produk

Cold Impact Resistance Testing Machine for Electrical Accessories & Cables | IEC 60884 Low Temperature Impact Test Equipment


Engineered for Products That Must Perform in Cold Environments
Not every electrical product operates in ideal temperatures.

Power cords installed outdoors, cable assemblies used in cold storage facilities, electrical accessories shipped across different climate zones, and wiring systems exposed to winter conditions all face one common challenge—maintaining their mechanical strength when temperatures drop.

The HongCe Low Temperature Impact Testing Machine is developed to help manufacturers verify exactly that.

Designed according to IEC 60884-1 requirements, this professional Impact Testing Machine evaluates whether electrical accessories, plugs, socket-outlets, wire insulation, cable sheaths, and similar products can withstand mechanical impact after low-temperature conditioning.

For manufacturers pursuing product reliability, certification approval, and customer confidence, cold impact testing is not simply a compliance requirement—it is a reflection of product quality.


Why Low Temperature Impact Testing Matters

Many polymer materials become harder and more brittle at lower temperatures.

A product that performs perfectly at room temperature may crack, deform, or lose protective properties when subjected to sudden impact in a cold environment.

Low-temperature impact testing helps manufacturers:

Reduce field failures
Improve product reliability
Validate material performance
Meet international certification requirements
Enhance product durability in global markets
Prevent costly quality claims

The HongCe HC9924 provides a standardized and repeatable testing method to identify these risks before products reach customers.


What Can Be Evaluated?
Impact resistance
Mechanical durability
Material brittleness
Surface cracking
Structural integrity
Housing strength
Insulation performance


International Reference Standards
IEC 60884-1
Plugs and Socket-Outlets for Household and Similar Purposes


Technical Specifications:

Station Single station
Weight of the impact hammer (g) 1000±2 and 100±1
Height of the impact (mm) 100
Steel intermediate piece Φ20, bottom end rounded R300, 100g
Steel support thickness 40mm, weight:10±1kg
Standard

IEC60884-1 24.4 Figure 27

IEC60884-1 30.4 Figure 42

Operation Manual, mechanical release


Product Highlights
Accurate Mechanical Impact Simulation

The apparatus uses a precision-engineered impact system to simulate sudden mechanical stress after low-temperature conditioning.

Repeatable and Reliable Testing

A mechanical release mechanism ensures consistent test execution and minimizes operator influence.

Designed for Certification Laboratories

Widely used in quality inspection centers, certification laboratories, R&D facilities, and manufacturing quality departments.

Built for Long-Term Operation

Heavy-duty steel components ensure structural stability and long service life.

Easy Integration with Climate Chambers

Compatible with low-temperature test chambers for standardized cold conditioning procedures.

IEC-Compliant Construction

Designed in accordance with IEC 60884 testing requirements and related cable testing standards.

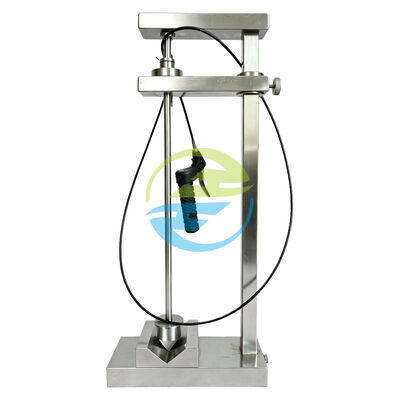

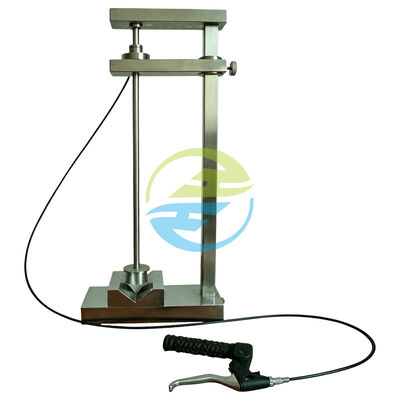

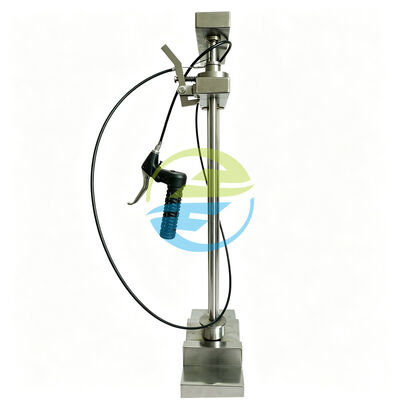

Product Image:

Cold Impact Resistance Testing Machine for Electrical Accessories & Cables | IEC 60884 Low Temperature Impact Test Equipment 0


FAQ
Is the equipment suitable for cable testing?

Yes. It is commonly used for evaluating the low-temperature impact resistance of cable insulation and sheath materials.

Does the machine include a low-temperature chamber?

The apparatus is designed for use together with a low-temperature chamber.

Which industries commonly use this equipment?

Cable manufacturers, electrical accessory manufacturers, certification laboratories, testing institutes, and product development centers.

Can HongCe provide customized designs?

Yes. Customized fixtures, dimensions, and project-specific solutions are available.

Is operator training provided?

Yes. Complete documentation, operation guidance, and technical support are included.

Can calibration certificates be supplied?

Yes. Calibration-related support can be arranged according to project requirements.
