Reliable Glow Wire Flammability Testing Equipment Up to 960°C for IEC 60695 Fire Hazard Evaluation

Reliable Glow Wire Flammability Testing Equipment Up to 960°C for IEC 60695 Fire Hazard Evaluation

Nama merek:	HongCe
Nomor Model:	GW-2
Moq:	1 set
harga:	Dapat dinegosiasikan
Ketentuan Pembayaran:	T/T,L/C
Kemampuan Penyediaan:	10 Set Per Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Calibration certificate(cost additional)

Nama:

Alat Uji Kawat Cahaya

Standar:

IEC 60695

Aplikasi:

Tes Kawat Cahaya

Mode operasi kontrol:

Kontrol PLC

Filamen bercahaya:

Ф4mm ± 0,04mm

Kedalaman pemanasan maksimum:

7 mm ± 0,5 mm

Waktu pengujian:

30 detik ± 1 detik

Termokopel:

ketahanan suhu 1100°

Kemasan rincian:

kayu lapis

Menyoroti:

Glow Wire Flammability Testing Equipment

IEC 60695 Fire Hazard Tester

High-Temperature Flammability Testing Device

Deskripsi Produk

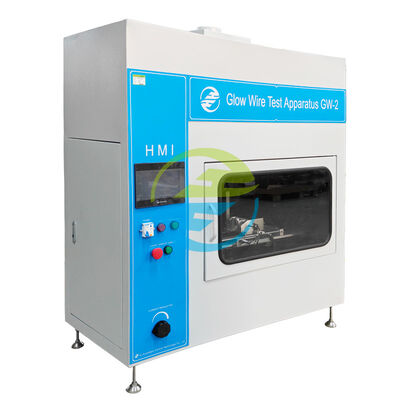

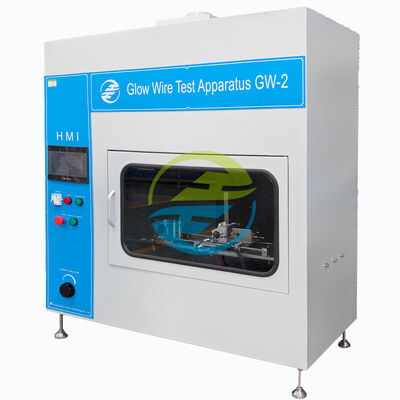

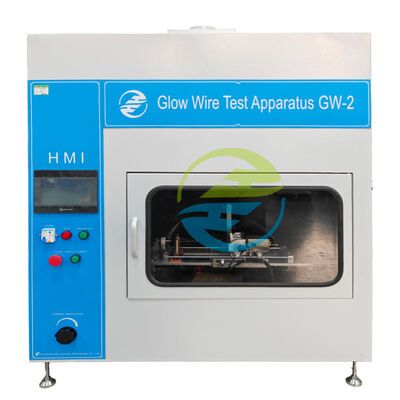

Reliable Glow Wire Flammability Testing Equipment Up to 960°C

HongCe's Glow Wire Test Apparatus is engineered for laboratories requiring precise fire safety evaluation. Featuring stable PLC temperature control, a durable safety enclosure, and repeatable test results compliant with IEC 60695 standards, this system enables confident verification of ignition resistance for plastics and electrical components.

Compliance Standards

IEC 60695-2-10 – Glow wire test equipment and general test method
IEC 60695-2-11 – Tests with the glow wire for flammability of end products (GWEPT)
IEC 60695-2-12 – Testing with glow wire for flammability of materials (GWFI)
IEC 60695-2-13 – Tests with the glow wire for the flammability of materials (GWIT)

Application Areas

Plug sockets, connectors, and switches
Appliance housings and internal plastic components
Wire insulation and terminal blocks
EV charging component plastic enclosures
Lighting fixtures and small electrical devices
Consumer electronics plastic parts

Technical Specifications

Parameter	GW-2 (Touch Screen)
Working Voltage	220V / 50Hz
Control Operation Mode	PLC control, 7-inch color touch screen with infrared remote control
Glowing Filament	Ф4mm ± 0.04mm (>77% Ni/20±1% Cr) special standard ring shape, horizontal standing
Specimen Pressure	0.95N ± 0.1N
Maximum Heating Depth	7mm ± 0.5mm
Specimen Movement Speed	10mm/s – 25mm/s
Temperature Calibration	Calibration temperature: 960°±10°C, hot wire electric heating
Thermocouple	RS imported 1mm armour nickel-chromium/nickel/aluminum K-Thermocouple, temperature resistance 1100°
Silver Foil	Purity 99.8%, area: 2m², thickness: 0.06mm
Tray	Silk paper (12-30g/m³) on 10mm thick pine board, 200±5mm below test sample
Test Chamber	>0.5 cubic meter, black background, background illuminance ≤20Lx, with exhaust fan
Testing Time	30s ± 1s
Test Procedure	Automated sample movement, automatic return after 7mm penetration
Lighting	Equipped with controlled lighting in test chamber
Dimensions & Weight	1100×550×1200mm, 140kg

Product Overview

Frequently Asked Questions

Can it meet both GWFI and GWIT tests?

Yes. The system supports IEC 60695-2-12 (GWIT) and 2-13 (GWFI) methods with proper settings and fixtures.

Is temperature stable during long test runs?

PLC control with closed-loop feedback keeps temperature drift minimal for repeatability.

Can you customize voltage and plugs?

Absolutely. We offer 110V/220V options and local plug standards.

Do you provide calibration certificates?

Factory calibration is included. Third-party calibration can be arranged.

Is operator safety considered?

Yes—enclosed chamber, observation window, emergency stop, and fume outlet are standard.

How fast is delivery?

Standard configurations ship quickly; custom options typically add a short lead time.
