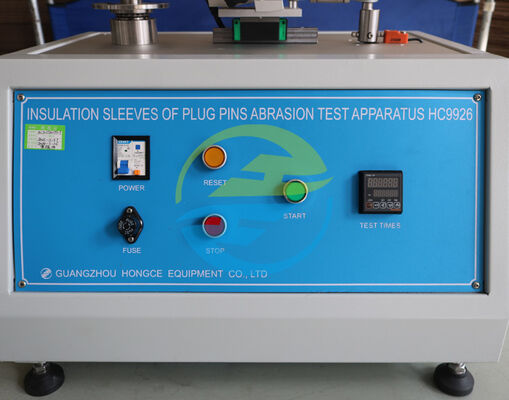

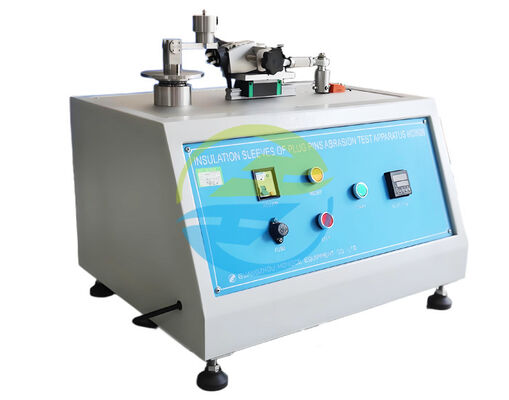

Durable Plug Socket Tester with 4N Load and 30 Movements per Minute for Insulation Sleeves Abrasion Testing

Durable Plug Socket Tester with 4N Load and 30 Movements per Minute for Insulation Sleeves Abrasion Testing

Nama merek:	HongCe
Nomor Model:	HC9926
Moq:	1 set
harga:	Dapat dinegosiasikan
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	10 set per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Tiongkok

Sertifikasi:

Calibration certificate(cost additional)

Stasiun Uji:

1 stasiun

Memuat:

Waktu tes:

1-999999

Tingkat abrasi:

30 gerakan per menit

Stroke kerja:

9mm

Jaminan:

1 tahun

Nama:

Selongsong Isolasi Alat Uji Abrasi Pin Steker

Sampel uji:

Isolasi Selongsong pin steker

Kemasan rincian:

Kayu lapis

Menyoroti:

4N Load Plug Socket Tester

30 Movements per Minute Insulation Sleeves Abrasion Test Apparatus

9mm Working Stroke Plug Insulation Wear Testing Equipment

Deskripsi Produk

Plug Socket Tester for Insulation Sheath Abrasion

Durable Plug Insulation Wear Testing Equipment for Safety Compliance

With the increasing presence of smart home appliances, small electrical appliances, and power banks in various settings, plug safety has become paramount. The plug's insulating sheath is the primary user contact point, and its wear resistance directly impacts:

Metal exposure risk
Electric shock potential
Long-term stability during plug insertion and removal

This device simulates plug friction and wear processes, providing continuous, quantitative verification of sheath material wear resistance to demonstrate proven safety through scientific testing.

Compliance Standards

IEC 60884-1 Clause 24 - Resistance to abrasion of plug sleeves
IEC 60320-1 Section 17 - Durability & mechanical strength of appliance couplers
IEC 60598-1 Clause 4.14 - Mechanical strength and abrasion tests

Product Features

Stability Testing Structure: High-precision transmission mechanism ensures uniform, repeatable wear testing
Multiple Plug Size Support: Accommodates wear testing for various national standard plug sheaths
Realistic Usage Simulation: Adjustable friction angle, pressure, and frequency mimic real-world conditions
Safety Protection Design: Includes overload protection and emergency stop button
Low Maintenance Structure: Wear-resistant core components ensure long-term operation

Test Items

Sheath surface wear depth
Sheath material abrasion resistance rating
Friction durability (number of friction cycles)
Sheath coating peeling condition
Risk of metal exposure after wear
Structural deformation condition

Technical Parameters

Parameter Name	Parameter Data
Power supply	AC220V, 50Hz
Station	Single station
Test time	1-999999, preset
Rate of abrasion	30±1 movements per minute
Load	4-0.1N
Working stroke	9mm

Testing Capabilities

Thickness change of insulation sleeve after specified wears
Insulation resistance after wear (requires megohmmeter)
Tear resistance after repeated wear
Dielectric strength of worn area
Firmness of insulation sleeve and pin connection
Exposed conductive parts after wear
Wear differences under various temperature environments
