IPX Waterproof Testing Equipment with IPX3/IPX4 Rating Adjustable Swing Angle and Precision-Controlled Spray System for Water Ingress Protection

Nama merek:	HongCe
Nomor Model:	IPXLYBG
Moq:	1 set
harga:	Dapat dinegosiasikan
Ketentuan Pembayaran:	L/c, t/t
Kemampuan Penyediaan:	20 set per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

CINA

Sertifikasi:

Calibration certificate(cost additional)

Tingkat Tes:

IPX3/IPX4

Kecepatan osilasi:

4–6 putaran/menit

Tekanan air:

50–150 kPa dapat disesuaikan

Tabel Spesimen:

Berpenggerak motor, kecepatan dapat disesuaikan 1–5 rpm

Persediaan air:

Sirkulasi air bersih dan tersaring

Berat:

Kira-kira. 200kg

Kemasan rincian:

Kayu lapis

Menyoroti:

IPX3/IPX4 Waterproof Testing Equipment

Adjustable Swing Angle Rain Test System

Precision-Controlled Spray System Water Ingress Protection Tester

Deskripsi Produk

IPX Waterproof Testing Equipment for Rain Spray and Oscillating Tube Test

Precision IPX3 & IPX4 Rain Test System for Laboratory Water Ingress Protection

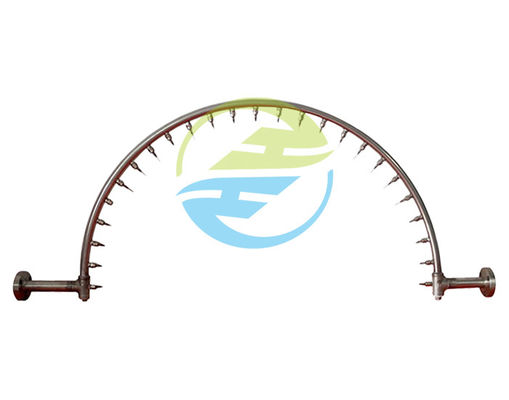

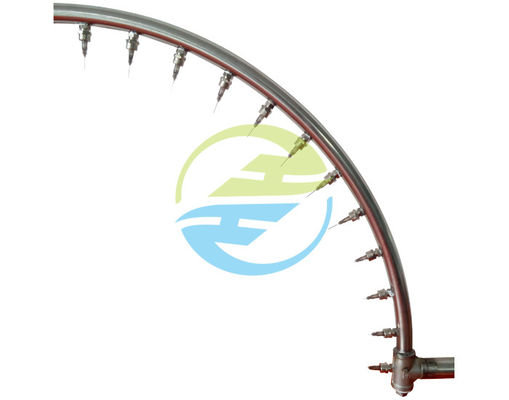

Water's impact can make or break a product's success. Our IPX-rated rain showerhead pipe simulates natural rainfall in your lab. With regulated water flow and angles, it shows how well your product will hold up. We focus on strong sealing for user's safety with dependable equipment.

Product Features

Dual Functionality (IPX3 & IPX4) – Supports both spray and oscillating rain tube tests
Adjustable Swing Angle & Flow Rate – Simulates light rain to heavy spray conditions
Stainless Steel Construction – Corrosion-resistant structure ensures long-term stability
Precision-Controlled Spray System – Consistent water pressure and droplet distribution
Programmable Control Panel – Touch-screen interface with test time, swing speed, and cycle control
Compliant with IEC, ISO, and GB Standards – Ensures globally recognized results

Technical Specifications

Test Levels	IPX3 / IPX4
Swing Angle	±60° / ±180° (adjustable)
Tube Radius	200 mm / 400 mm / 600 mm / 800 mm (optional)
Spray Nozzle Diameter	0.4 mm
Water Flow Rate	0.07 L/min per hole
Material	SUS304 stainless steel
Test Environment	10–40°C, ≤85% RH
Control System	Touch screen (Optional PLC programmable)

International Test Standards

IEC 60529 - Degrees of Protection Provided by Enclosures (IP Code)
ISO 20653 - Road Vehicles – Protection Against Water Ingress
DIN 40050 - IP Code for Road Vehicles

Applicable Objects

Electrical enclosures, plastic housings, connectors, junction boxes, sensors, outdoor products.

Testable Parameters

Water ingress level
Drip, spray, and oscillation performance
Seal integrity evaluation
Resistance to rain penetration
Component durability under simulated rainfall
Compliance verification for IPX3 and IPX4 protection

Why Choose HONG CE

HONG CE stands for precision, reliability, and trust. With over 15 years of experience in IP testing equipment manufacturing, we help global laboratories and manufacturers ensure product quality with confidence. Every test conducted on a HONG CE device is a dialogue between precision engineering and your product's promise of safety.
